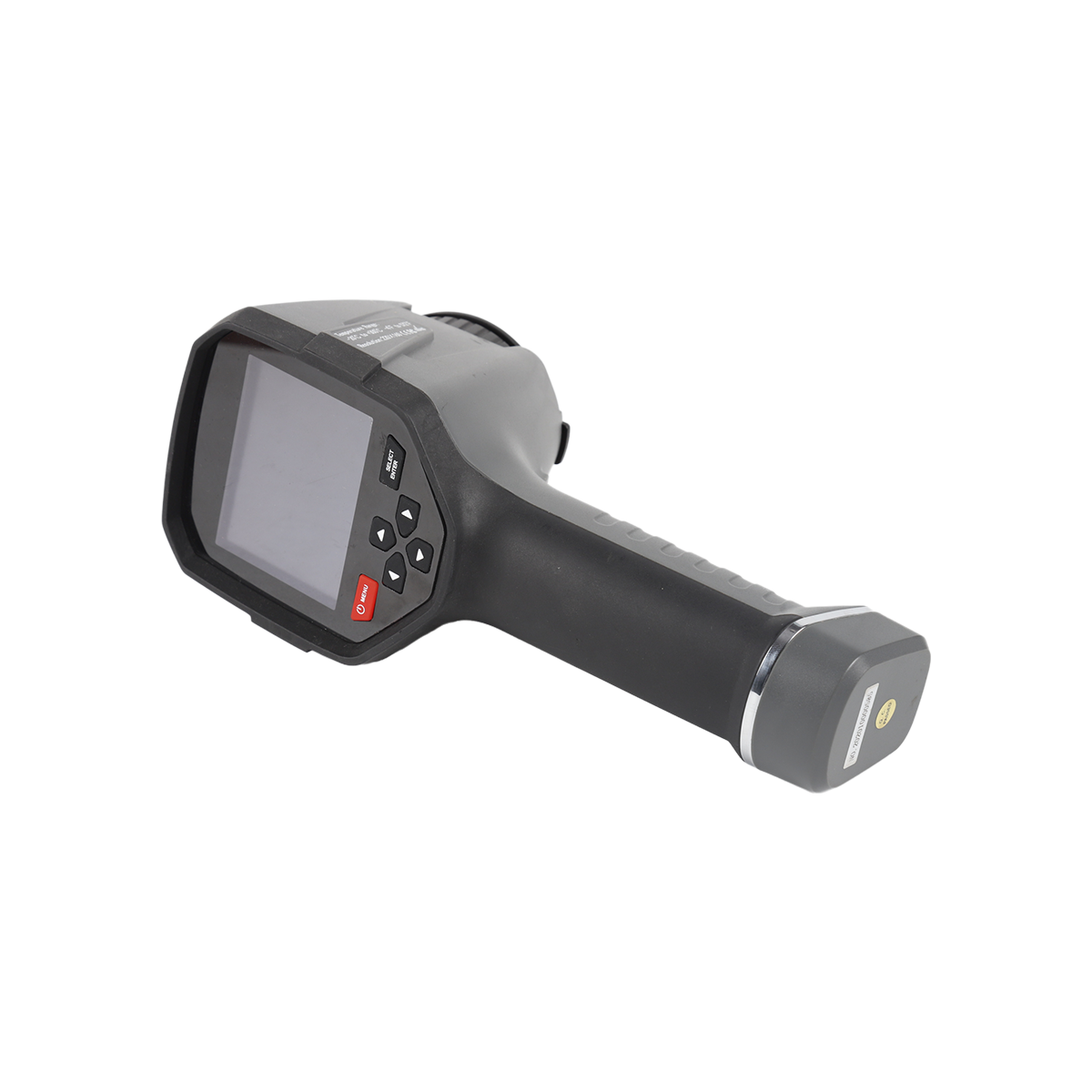

3.5" TFT Display Screen: 320 x 240
Infrared Image Resolution: 220 x 160
Visible Image Resolution: 640 x 480
Field Angle: 35°x 26°/4.0m
Frame Rate: 9 Hz
Lens Focal Lenth: 3.5mm
Emissivity Setting: Adjustable From 0.01 to 1.00
IFOV: 3.0 mrad
Cell Size: 12μm
Focusing Mode: Fixed
NETD: ≤70mK @ 25℃, F#1.0
Wavelength Coverage: 8 to 14μm
Emissivity: Adjustable from 0.01 to 1.0
Color Palette: Rainbow, Iron oxide red, Cold color, White hot, Black hot
Support Software Analysis & Video
Measurement Range: -20℃ to 300℃(-4°F to 572°F)
Work Temperature: -10℃ to 45℃(14°F to 113°F)
Storage Temperature: -20℃ to 60℃(-4 Fto 140 F)
Measurement Accuracy:±2℃/±2%
Built-in 3G (above 20 thousand image stored)
Relative Humidity: 10%RH to 85% RH(Non-condensing)
Removable Rechargeable Lithium Battery 2200mAh
Working Time:2-3 Hours
Waterproof IP65
